Serpentine belt installation help

One of the tricky steps during the serpentine belt replacement on 1NZ-FE engine is moving the alternator to get the correct belt tension. Many installs ended with damaging the VVT Control Valve because it sits very close to the alternator. Extra care needs to be taken when working near the valve and its connector:



A simple mod that costs less than $2 makes the belt tightening much easier and risk free. All we need are the M8x1.25 bolt with a nut and a washer:



The alternator tensioner bracket has a hole with the nut welded to the back of it- that is where the bolt needs to be installed and tightened with the jam nut:



Now it can be used as the safe leverage point to move the alternator:



Good sources for metric fasteners are ACE Hardware and Do it Center stores.
Hope that helps.

Last edited by PCH; 11-30-2011 at 02:16 AM..
PCH is offline

Advertisement [Remove Advertisement]
Old 11-30-2011, 07:43 AM   #2
sdsnybny
RS4 #303

sdsnybny's Avatar

Join Date: Aug 2006
Location: "HFDNDAPNW"
Posts: 4,394
sdsnybny has a spectacular aura aboutsdsnybny has a spectacular aura about
Send a message via Yahoo to sdsnybny
Re: Serpentine belt installation help

Perfect Victor and great pics of the tight location
sdsnybny is offline
Old 11-30-2011, 07:49 AM   #3
bbszero

bbszero's Avatar

Join Date: Feb 2009
Location: Hela Fass Dooo PNW
Posts: 7,476
bbszero will become famous soon enoughbbszero will become famous soon enough
Re: Serpentine belt installation help

Damn, that is brilliant Victor! Gotta do the belts on the new box soon, gonna do this for sure!
bbszero is offline
Old 11-30-2011, 09:59 AM   #4
ogerdgonz
Authorized Vendor

ogerdgonz's Avatar

Join Date: Feb 2006
Location: Royal Oak MI
Posts: 4,720
ogerdgonz is on a distinguished road
Send a message via Skype™ to ogerdgonz
Re: Serpentine belt installation help

Isn't it extra tricky to do a serpentine belt on our car since we do not use a serpentine belt..... Only kidding. Once again excellent advice and detailed photos from Victor.
ogerdgonz is online now
Old 11-30-2011, 11:57 AM   #5
PCH
06.5 TCM

PCH's Avatar

Join Date: Jun 2006
Location: SoCal
Posts: 10,026
PCH is a jewel in the roughPCH is a jewel in the roughPCH is a jewel in the rough
Re: Serpentine belt installation help

LOL, you don't say. Especially since we don't have an alternator either. According to the tech literature it's a generator. And the belt: the fan and generator V–ribbed belt
Thanks guys. I'm gonna attack my belts soon, already got the genuine Mitsuboshi from the dealer. Thinking if i should change the water pump at the same time since i'm at 80K.
PCH is offline
Old 11-30-2011, 12:12 PM   #6
sdsnybny
RS4 #303

sdsnybny's Avatar

Join Date: Aug 2006
Location: "HFDNDAPNW"
Posts: 4,394
sdsnybny has a spectacular aura aboutsdsnybny has a spectacular aura about
Send a message via Yahoo to sdsnybny
Re: Serpentine belt installation help

Gates makes racing belts for our cars in blue
sdsnybny is offline
Old 11-30-2011, 12:29 PM   #7
PCH
06.5 TCM

PCH's Avatar

Join Date: Jun 2006
Location: SoCal
Posts: 10,026
PCH is a jewel in the roughPCH is a jewel in the roughPCH is a jewel in the rough
Re: Serpentine belt installation help

They look real nice. I also thought about GatorBack – some people have good words about them. But decided to stick with the originals. Mitsuboshi lasted more than required and i only had to tighten it once.
PCH is offline
Old 12-02-2011, 06:43 PM   #8
linuxBx
Registered User

linuxBx's Avatar

Join Date: Nov 2011
Location: SoCal
Posts: 37
linuxBx is on a distinguished road
Re: Serpentine belt installation help

I replaced the same belt just the other day before joining this forum (this tip sure would have been useful). I still took care of not damaging anything around there when trying to put tension on the belt. Since then when I use the AC, there is still some squeaking. So I might just end up doing this again... I just dread trying to get to the bottom bolt because the last time my arm got stuck between the radiator and the alternator. Thanks for the tip!
linuxBx is offline
Old 12-03-2011, 02:35 PM   #9
PCH
06.5 TCM

PCH's Avatar

Join Date: Jun 2006
Location: SoCal
Posts: 10,026
PCH is a jewel in the roughPCH is a jewel in the roughPCH is a jewel in the rough
Re: Serpentine belt installation help

Make sure you don't overtighten the belt because that will put more stress on the water pump and that's a real weak spot. If you just can twist the longest part of the belt (between alternator and main pulley) by hand 90 degrees but no more than that- that's tight enough. Lower quality belts will squeak even when they are tight.

Factory belt replacement manual (thanks Tomas!): http://scionlife.org/Scion_Docs/2004...eplacement.pdf

Last edited by PCH; 12-03-2011 at 02:38 PM..
PCH is offline
Old 12-03-2011, 03:56 PM   #10
SAKURA
HELA FASS DOOO

SAKURA's Avatar

Join Date: Feb 2008
Posts: 10,221
SAKURA has a spectacular aura aboutSAKURA has a spectacular aura about
Re: Serpentine belt installation help

two thumbs up victor!
SAKURA is offline
Old 12-04-2011, 01:41 AM   #11
PCH
06.5 TCM

PCH's Avatar

Join Date: Jun 2006
Location: SoCal
Posts: 10,026
PCH is a jewel in the roughPCH is a jewel in the roughPCH is a jewel in the rough
Re: Serpentine belt installation help

Thanks Eric, HFD are good people

Another thing that sometimes gets difficult is breaking the alternator pivot bolt loose. You only have to give less than one complete turn to be able to move the alternator but the bolt is extra tight (Bolt "B" in the factory diagram).

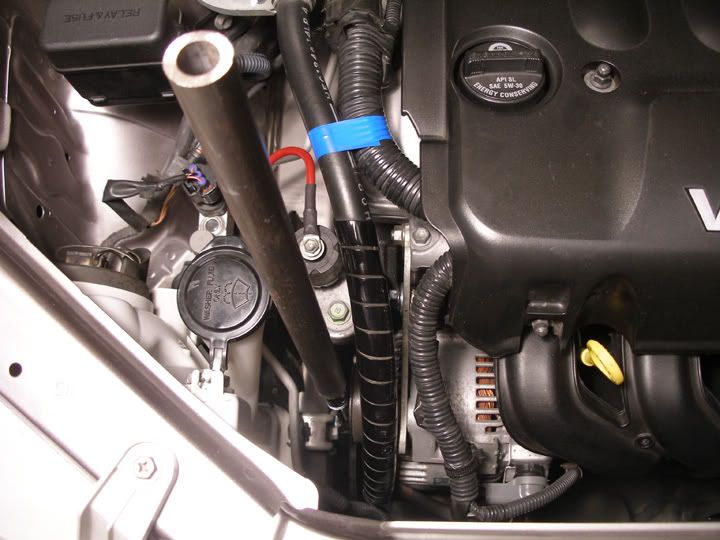

We need 14mm socket, ratchet and some extra leverage:
