DIY: Automatic Transmission Drain and Refill Oil

I just did a quick 'drain & refill'. My xB is at 72127 miles, auto trans. According to the Service Guide, there's no need to replace the ATF under normal driving conditions. It also says in the ATF dispstick. But I was curious to see what it look like after all this mileage. I'm planning to send a sample ATF to Blackstone Labs (not affiliated) for analysis. It costs about $20 to have it analyzed. I'll post the report when I get it back.

Tools I used
10mm Hex Wrench
Empty 5qt Oil jug (container)
Paper towels
Funnel whit a the spout small enough to fit the ATF Dip Stick hole

Parts :
ATF Type T-IV - $4.83 at the dealership

Drain Plug Gasket (Washer) - $1.50 at the dealership (picture of the used one)


1. Locate the Transmission Drain Plug, right underneat the auto trans oil pan. It is at the opposite side of the Engine Oil drain plug.

2. Removed the drain plug with the Hex wrench. Removed the gasket as well.
3. Let the ATF drained into the empty 5qt. jug. It helps to use a funnel into the jug to catch all the ATF Fluid. When it was done, it drained close to 3 qts. According to the service manual, the ATF Drain & Refill called for 3.1 US qt.
4. Installed a new gasket and the drain plug. According to Service Manual, the drain plug torque is 36 ft. lbs.
5. Remove ATF dispstick. This one had a reddish colored handle. And place the funnel.
6. I first poured 2.5 qts. Started the car. Let the engine warmed up to running temperature (about 180 degrees in mine) and moved the shift lever from P to L then back to P again.

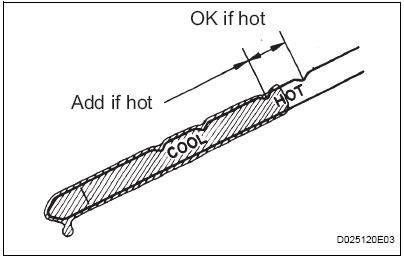

7. Wiped the ATF dip stick clean and inserted it back to the pipe. Took it out and checked if the level is at the hot position.
8. Left the car running and poured some more ATF fluid until it reached the right level.

9. Put back the ATF dispstick, inspect for leaks underneat then cleaned up. Will dispose the old ATF at my town's Recycling depot.

Here's a comparison of the old and new ATF.


Note : According to the Service Manual, the ATF Dry fill called for 7.2 US qt. If I understand this correctly, I only replaced about 44% of the ATF Fluid. I guess I have to drain and refill it again soon.
babelbox is offline
Sponsored Links
Advertisement

post #2 of 17 Old 10-17-2009, 08:54 AM
Registered User

CBSIMONSEZ's Avatar

Join Date: Feb 2006
Location: Strong Island NY
Posts: 109
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
CBSIMONSEZ is on a distinguished road
Send a message via AIM to CBSIMONSEZ
Re: DIY: Automatic Transmission Drain and Refill Oil

i wonder ....

If anyone makes a synthetic tranny fluid &
If it would be worth it to replace the filter ( if there is one ) while you have the lower end empty?

Lie still, and close your eyes girl
So lovely, it feels so right
I want to hold you close
Soft breasts, beating heart
As I whisper in your ear
I want to f****** tear you apart
Tear You Apart
SHE WANTS REVENGE
CBSIMONSEZ is offline
post #3 of 17 Old 10-17-2009, 12:32 PM
Registered User

Join Date: Apr 2006
Location: cedar park tx
Posts: 128
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
05blackbox is on a distinguished road
Send a message via AIM to 05blackbox
Re: DIY: Automatic Transmission Drain and Refill Oil

the best way to service the transmission is to have a transmission flush service done to it it will replace all the fluid that is in the transmission and in the torque converter or if you dont want to go through that you can replace the filter.
05blackbox is offline

post #4 of 17 Old 10-17-2009, 06:03 PM
Registered User

hotweelz4me's Avatar

Join Date: May 2007
Location: Jacksonville, FL
Posts: 1,691
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
hotweelz4me will become famous soon enough
Garage
Send a message via MSN to hotweelz4me
Re: DIY: Automatic Transmission Drain and Refill Oil

Quote:
Originally Posted by CBSIMONSEZ View Post
i wonder ....

If anyone makes a synthetic tranny fluid &
If it would be worth it to replace the filter ( if there is one ) while you have the lower end empty?
There are synthetic options out there for example B&M Trick Shift Synthetic ATF. Replacing the filter would also require a new pan gasket. A ATF flush and full replacement of synthetic fluid would be a nice upgrade down the road.
hotweelz4me is offline
post #5 of 17 Old 10-17-2009, 07:19 PM
PCH
06.5 TCM

PCH's Avatar

Join Date: Jun 2006
Location: SoCal
Posts: 10,029
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
PCH is a jewel in the rough PCH is a jewel in the rough PCH is a jewel in the rough
Re: DIY: Automatic Transmission Drain and Refill Oil

BG Makes synthetic trans fluid: BG Products, Inc.
Nice DIY
PCH is offline
post #6 of 17 Old 10-17-2009, 09:00 PM
Registered User

Join Date: Apr 2006
Location: cedar park tx
Posts: 128
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
05blackbox is on a distinguished road
Send a message via AIM to 05blackbox
Re: DIY: Automatic Transmission Drain and Refill Oil

i forgot about bg we used them all the time when i worked at the dealership but they do have awesome stuff if you call around im pretty sure you could find a shop that uses there products and they will use the synthetic fluid for the tranny when they do the flush
05blackbox is offline
post #7 of 17 Old 10-17-2009, 09:45 PM
Registered User

silvertoast's Avatar

Join Date: Mar 2008
Location: pcola fl
Posts: 887
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
silvertoast will become famous soon enough
Re: DIY: Automatic Transmission Drain and Refill Oil

Quote:
Originally Posted by CBSIMONSEZ View Post
i wonder ....

If anyone makes a synthetic tranny fluid &
If it would be worth it to replace the filter ( if there is one ) while you have the lower end empty?
royal purple max atf is compatable doesnt say on the bottle but if u go to the website it is compatable with what the service manual says to use.

im currently running it in mine

Arrogance and Ignorance go hand in hand!
silvertoast is offline
post #8 of 17 Old 10-17-2009, 09:54 PM
Registered User

06xbox's Avatar

Join Date: Oct 2006
Location: Midwest
Posts: 119
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
06xbox is on a distinguished road
Re: DIY: Automatic Transmission Drain and Refill Oil

I work at a Toyota dealership and we recommend every 15k to change the Type T-4 fluid. I know Toyota says there is no need to change the fluid but I wouldn't recommend that at all. At 15k I have seen it totally black like the picture above. Def. a great write up!


06.5 Scion xB 5-Speed
06xbox is offline
post #9 of 17 Old 10-18-2009, 09:49 PM
Registered User

Join Date: Oct 2009
Location: New York City
Posts: 29
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
falcondrgn is on a distinguished road
Re: DIY: Automatic Transmission Drain and Refill Oil

Quote:
Originally Posted by 06xbox View Post
I work at a Toyota dealership and we recommend every 15k to change the Type T-4 fluid. I know Toyota says there is no need to change the fluid but I wouldn't recommend that at all. At 15k I have seen it totally black like the picture above. Def. a great write up!


What is toyota's definition of "Normal Driving"? Does stop and go traffic in NYC qualify as normal driving or severe driving? If what you are saying is accurate you mean we should change our transmission oil every 15,000 miles? That sounds awfully soon.
falcondrgn is offline
post #10 of 17 Old 10-19-2009, 11:55 AM
Registered User

06xbox's Avatar

Join Date: Oct 2006
Location: Midwest
Posts: 119
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
06xbox is on a distinguished road
Re: DIY: Automatic Transmission Drain and Refill Oil

Quote:
Originally Posted by falcondrgn View Post
What is toyota's definition of "Normal Driving"? Does stop and go traffic in NYC qualify as normal driving or severe driving? If what you are saying is accurate you mean we should change our transmission oil every 15,000 miles? That sounds awfully soon.
That would qualify for severe driving. Toyota and other auto manufacturers are very vauge when describing the maintenance schedules. Actually if you live in a climate where it is hot in summer and cold in winter this qualifies for the "severe" plan. I have seen it completely black at 15k or even sooner. Do what you feel is the best but I was always taught its better to do maintenance more often than not enough it will never hurt your vehicle.


06.5 Scion xB 5-Speed
06xbox is offline
post #11 of 17 Old 10-19-2009, 12:44 PM

gothbox's Avatar

Join Date: Aug 2007
Location: in a van down by the river.
Posts: 5,360
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
gothbox will become famous soon enough
Send a message via Yahoo to gothbox
Re: DIY: Automatic Transmission Drain and Refill Oil

i use Royal Purple in gothbox, I dropped the pan and changed the filter and gasket as well when I did that. Picked both the filter and gasket up at Auto Zone as a "combo kit" for not a whole lot of $$.


Scion Evolution Memphis Chapter
www.sememphis.com
gothbox is offline
post #12 of 17 Old 10-19-2009, 12:53 PM
Registered User

enuf2spare35's Avatar

Join Date: Feb 2008
Location: Northern Kentucky
Posts: 3,365
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
enuf2spare35 will become famous soon enough
Re: DIY: Automatic Transmission Drain and Refill Oil

I used Redline in the Toy Bx

www.airliftcompany.com
www.pyleaudio.com
www.lanzar.com
www.dynamat.com
www.thatrotorshop.com
Xtreme Sound - Cincinnati, OH, 45214



4 LIFE
United by Individuality
Hated by many, Confronted by none
He does what it takes to get the job done
Enuf said for now I won't say his name,
Don't hate the playa! Hate the game!
enuf2spare35 is offline
post #13 of 17 Old 10-19-2009, 04:36 PM
Registered User

CBSIMONSEZ's Avatar

Join Date: Feb 2006
Location: Strong Island NY
Posts: 109
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
CBSIMONSEZ is on a distinguished road
Send a message via AIM to CBSIMONSEZ
Re: DIY: Automatic Transmission Drain and Refill Oil

Good to know guys. Looks like ill be waiting until the spring when the weather warms up a little to change the tranny fluid.

Lie still, and close your eyes girl
So lovely, it feels so right
I want to hold you close
Soft breasts, beating heart
As I whisper in your ear
I want to f****** tear you apart
Tear You Apart
SHE WANTS REVENGE
CBSIMONSEZ is offline
post #14 of 17 Old 11-03-2009, 07:57 PM Thread Starter
Registered User

babelbox's Avatar

Join Date: Nov 2006
Location: New Jersey
Posts: 145
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
babelbox is on a distinguished road
(Thread Starter)
Re: DIY: Automatic Transmission Drain and Refill Oil

Here's the result of the ATF Analysis. Total miles on ATF was 72,127. 2004 Scion xB, Auto Trans. This is my daily driver, 77% highway / 23% city.

babelbox is offline
post #15 of 17 Old 11-03-2009, 08:20 PM
Registered User

Join Date: Jun 2008
Location: Northern Ind
Posts: 24,432
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 475 Post(s)
dubeexb06 will become famous soon enough dubeexb06 will become famous soon enough
Re: DIY: Automatic Transmission Drain and Refill Oil

Well, have to say that you have opened a new can of worms. Your results look to be good. Thanks for showing the results.
dubeexb06 is offline
post #16 of 17 Old 11-03-2009, 09:21 PM
HELA FASS DOOO

SAKURA's Avatar

Join Date: Feb 2008
Posts: 10,235
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
SAKURA has a spectacular aura about SAKURA has a spectacular aura about
Re: DIY: Automatic Transmission Drain and Refill Oil

20k before we get to see the next results.....

btw, good stuff.

SAKURA is offline
post #17 of 17 Old 11-03-2009, 11:49 PM

Eav10xB's Avatar

Join Date: Apr 2008
Location: Bay Area
Posts: 1,484
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Eav10xB is on a distinguished road
Send a message via AIM to Eav10xB
Re: DIY: Automatic Transmission Drain and Refill Oil

I need to do this before it starts raining im at 50k miles and need this done asap!
Eav10xB is offline
